Understanding Time-Temperature-Transformation (TTT) and Continuous Cooling Transformation (CCT) Diagrams

1. Unlocking the Secrets of Steel

Ever wondered how metallurgists predict the final microstructure of steel after it's been heated and cooled? Well, two powerful tools they use are Time-Temperature-Transformation (TTT) and Continuous Cooling Transformation (CCT) diagrams. Think of them as roadmaps guiding the journey of steel's transformation, helping engineers achieve desired properties like strength, hardness, and ductility. But what exactly is the key difference between these two diagrams, and why should you even care? Let's dive in, shall we? Consider this your friendly neighborhood explanation of materials science!

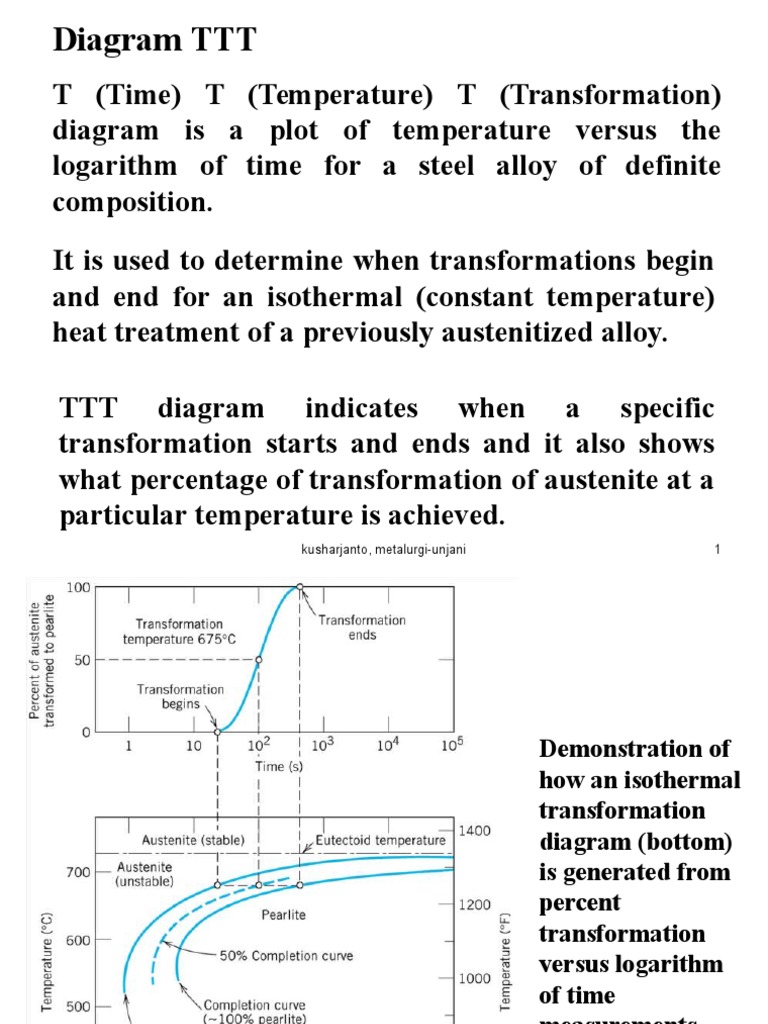

Imagine you're baking a cake. The recipe tells you to hold the cake at a certain temperature for a specific time to get the perfect texture. TTT diagrams are similar; they illustrate the transformation of austenite (a high-temperature phase of steel) into other phases like pearlite, bainite, and martensite, when the temperature is held constant for a certain period. These diagrams are created under idealized, isothermal (constant temperature) conditions in a lab. It's a controlled environment, like a carefully monitored oven.

So, we're talking about holding that steel sample at a constant temperature. What does that mean in practical terms? Picture this: you heat your steel to austenite, then rapidly quench it to a specific temperature — say, 600C — and hold it there. The TTT diagram tells you how long it will take for austenite to start transforming into pearlite at that temperature, how long until it's halfway transformed, and how long until the transformation is complete. It gives you a precise, step-by-step timeline for a specific temperature.

However, in the real world, things are rarely that simple. Steel components are rarely cooled in such a controlled, isothermal manner. Instead, they usually cool continuously, whether slowly in air or rapidly in water. That's where CCT diagrams come into play. They're like the "real-world" version of TTT diagrams, accounting for the continuous cooling rates that occur during manufacturing processes like welding, casting, and heat treatment. Think of it as baking that cake with a slightly wonky oven that fluctuates a bit.

Kuliah Diagram TTT Dan CCT PDF Materials Science Metals

The Core Distinction

2. Isothermal vs. Continuous Cooling

The key difference, the keyword term, boils down to the cooling conditions. The keyword term is cooling conditions (noun phrase). TTT diagrams depict transformations under isothermal (adjective) conditions (constant temperature), while CCT diagrams represent transformations under continuous cooling (adjective) conditions. It's like the difference between a carefully controlled experiment and a real-life scenario. This fundamental difference has significant implications for predicting the final microstructure and, therefore, the mechanical properties of the steel.

Think of it this way: a TTT diagram is a snapshot of what happens at a specific temperature, allowing researchers to pinpoint exactly how long it takes for a specific phase transformation to occur. A CCT diagram, on the other hand, captures the entire cooling process, taking into account the constantly changing temperature and its effect on the transformation kinetics. It's a dynamic picture instead of a still life.

Because CCT diagrams reflect real-world scenarios, they're often more useful for engineers who need to predict the final properties of a steel component after it's been heat treated or welded. They take into account the fact that cooling rates are rarely uniform, and that different parts of a component may cool at different rates. This makes CCT diagrams invaluable for selecting the appropriate heat treatment process and predicting the resulting microstructure.

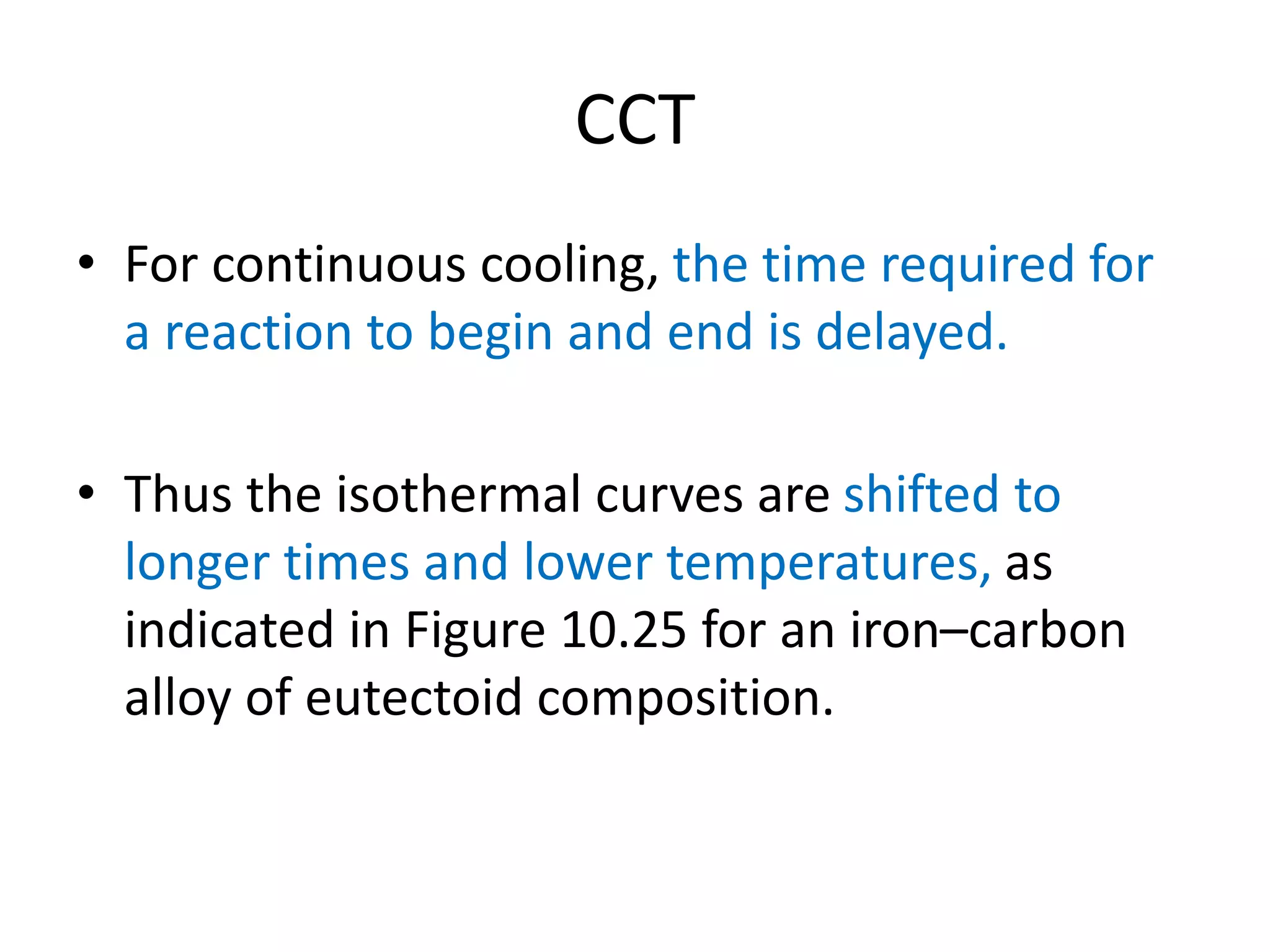

The shift from isothermal to continuous cooling introduces some crucial differences in the diagram itself. For instance, in a CCT diagram, the transformation start and finish curves are generally shifted to lower temperatures and longer times compared to a TTT diagram. This is because continuous cooling provides less time for diffusion-controlled transformations to occur at higher temperatures. That means you're less likely to form pearlite and more likely to form bainite or martensite when cooling continuously.

Ttt Cct Diagrams PPTX Chemistry Science

Practical Applications and Implications

3. From Lab to Shop Floor

So, how do these diagrams translate into real-world applications? Well, imagine you're designing a bridge. You need to choose a steel that can withstand specific loads and environmental conditions. By consulting a CCT diagram for different types of steel, you can predict how the steel's microstructure will change during the welding process and ensure that the final weld has the required strength and toughness. This predictive capability is crucial for ensuring the structural integrity of the bridge.

Another example is in the heat treatment of gears. Gears need to be hard on the surface to resist wear, but also tough enough to withstand impact loads. By carefully controlling the cooling rate during heat treatment, engineers can achieve the desired combination of hardness and toughness. CCT diagrams help them select the appropriate cooling medium (e.g., oil, water, air) and cooling rate to achieve the desired microstructure in the gear.

Furthermore, these diagrams are critical in failure analysis. If a steel component fails prematurely, metallurgists can use TTT and CCT diagrams to investigate the possible causes of failure. By examining the microstructure of the failed component and comparing it to the expected microstructure based on the processing history, they can determine whether the steel was heat treated correctly or whether there were any processing defects that contributed to the failure. Think of it as a metallurgical detective story!

Essentially, TTT and CCT diagrams serve as a bridge between theoretical understanding and practical application in the field of metallurgy. They empower engineers to make informed decisions about material selection, processing parameters, and quality control, ultimately leading to improved performance and reliability of steel components.

MicrostructureProperties II Crystallization Of Glass Ppt Video

Diagram Variations and Considerations

4. Not All Diagrams Are Created Equal

It's important to remember that TTT and CCT diagrams are specific to a particular steel composition. A diagram for one type of steel will not be accurate for another. Steel alloys are carefully formulated cocktails of elements, and even small changes in composition can have a significant impact on the transformation kinetics. So, always make sure you're using the correct diagram for the specific steel you're working with.

Also, the diagrams are often determined experimentally, and the accuracy of the diagram depends on the quality of the experimental data. Different labs may use different techniques and equipment, which can lead to some variation in the diagrams. It's always a good idea to consult multiple sources and compare diagrams before making any critical decisions.

Furthermore, the diagrams typically represent idealized conditions. In reality, factors such as the size and shape of the component, the presence of residual stresses, and the surface condition can all influence the transformation kinetics. These factors can make it difficult to accurately predict the microstructure based solely on the diagram. Practical experience and knowledge of the specific application are essential for making sound engineering judgments.

Finally, keep in mind that these diagrams are simplifications of a complex process. They don't capture all the nuances of phase transformations in steel. However, they provide a valuable framework for understanding the basic principles and making informed decisions about material processing. They are tools, not oracles. Like any tool, using them effectively requires understanding their limitations.

Ttt And Cct Graphs

TTT and CCT

5. Working Together for Better Steel

While we've focused on the difference, it's important to note that TTT and CCT diagrams are often used together. TTT diagrams provide a fundamental understanding of the transformation kinetics under isothermal conditions, which can then be used to predict the behavior under continuous cooling conditions. CCT diagrams build upon this foundation, providing a more realistic representation of the transformation process in practical applications. They complement each other.

Researchers often use TTT diagrams to develop models that can predict the transformation behavior under different cooling conditions. These models can then be used to generate CCT diagrams, which can be used by engineers to optimize heat treatment processes. It's a cyclical process, with each type of diagram contributing to a better understanding of steel transformations.

Think of TTT diagrams as the building blocks, and CCT diagrams as the completed structure. You need the building blocks to understand the basic principles, but you need the completed structure to see how those principles apply in the real world. Together, they provide a comprehensive understanding of steel transformations, allowing engineers to tailor the properties of steel to meet the demands of a wide range of applications.

So, the next time you see a TTT or CCT diagram, don't be intimidated! Remember that they're simply roadmaps that guide you through the fascinating world of steel transformations. They are powerful tools for predicting and controlling the properties of steel, and understanding them can help you make better decisions about material selection, processing, and quality control. Go forth and conquer the world of metallurgy!

Ttt And Cct Graphs

Frequently Asked Questions (FAQs)

6. Your Burning Questions Answered

Q: What happens if the cooling rate is too fast?

A: If the cooling rate is too fast, you might bypass the formation of pearlite and bainite and end up with martensite. Martensite is very hard and brittle, which might not be desirable for all applications. The CCT diagram will show you what cooling rates to avoid to prevent martensite formation.

Q: Are TTT and CCT diagrams available for all types of steel?

A: Not necessarily. Creating these diagrams requires significant experimental effort. They are commonly available for widely used steel grades. However, for less common or newly developed steels, you might have to rely on modeling or conduct your own experiments to generate the diagrams.

Q: Can I use a TTT diagram to directly predict the microstructure after continuous cooling?

A: While you can get a general idea, it's not recommended. TTT diagrams are based on isothermal conditions, which don't accurately reflect the continuous cooling process. A CCT diagram is much better suited for predicting the microstructure after continuous cooling.
