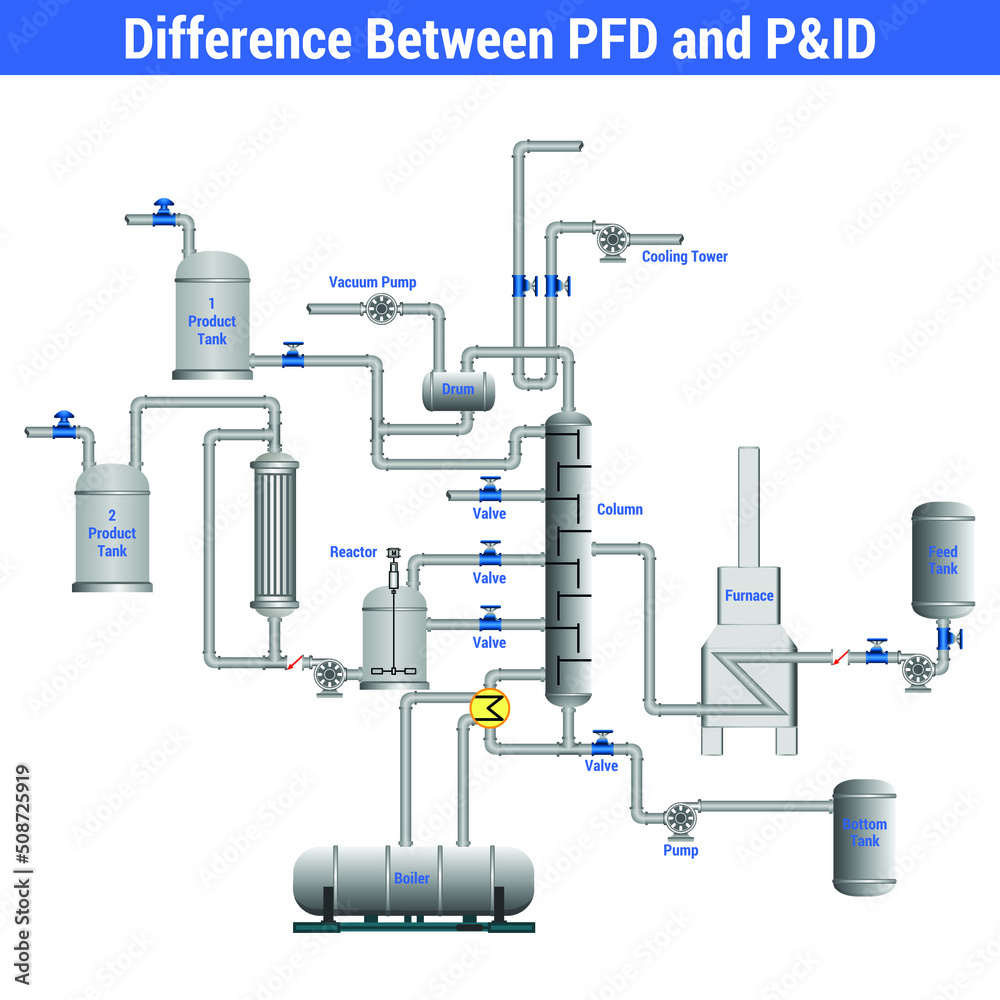

3. What does the P&ID include?
Now, let's dive into the world of the P&ID. This diagram takes things to a whole new level of detail. It shows everything related to the piping, instrumentation, and control systems of a process. We're talking every pipe, valve, fitting, sensor, controller, and even the type of insulation on the pipes! If you want to know exactly how a process is physically constructed, the P&ID is your go-to source.
P&IDs use specific symbols to represent different types of equipment and instruments. These symbols are standardized, so engineers can understand P&IDs from different projects or companies. You'll see different symbols for globe valves, ball valves, pressure transmitters, flow meters, and so on. It's like learning a secret language of engineering symbols.
A P&ID will also show the control schemes in detail. This includes the exact location of sensors, the type of controllers being used, and how they are connected to control valves. You'll see things like feedback loops, cascade control, and ratio control schemes. In short, if you want to know how a process is automated, the P&ID will tell you.
Beyond process information, P&IDs often include mechanical equipment information, such as motor horsepower or pump curves. They are often a reference point for safety and operational considerations. This level of detail is crucial for commissioning, operating, and maintaining a process plant. The P&ID is a living document that gets updated throughout the lifecycle of a facility.
